With the growing global demand for green and sustainable energy, the biomass rod production line, as an important equipment in the field of green energy manufacturing, has broad development prospects.
Overview of the biomass briquette production line
The biomass briquetting production line, in simple terms, is a set of professional equipment that processes various types of biomass raw materials into biomass fuel rods. The core equipment involved in the common biomass rod production line includes crushers, dryers, briquettes making machines, etc.

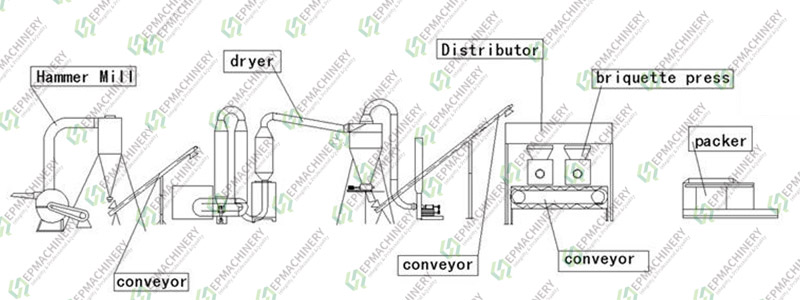

A small biomass briquetting plant flow chart
Technical principle of biomass briquettes making
The core technology of biomass rod making is to change the original loose structure of biomass raw materials through physical extrusion and other methods, so that it can be formed into fuel rods with higher density and strength under certain pressure and temperature conditions. In this process, the bio-briquettes making machine plays a key role. It uses mechanical structures such as spiral propulsion to apply continuous pressure to the pre-treated biomass raw materials that meet the process requirements, so that the lignin and other components in the raw materials are softened and bonded under high temperature and high pressure, and finally form a regular fuel rod shape.
Biomass briquettes making process
1. Raw material collection and screening
Almost all biomass can serve as raw materials for biomass rod making. However, we should fully consider the advantages of our own region and try to select raw materials that are abundant in local production, stable in supply, easy to obtain and convenient to transport. In this way, the cost of raw materials can be effectively reduced, and more substantial profits can be obtained.
- Corn stalks, wheat stalks, rice stalks, etc. are common raw materials for biomass rod making. Through the biomass rod making production line, waste is turned into treasure and converted into valuable biomass fuel rods;
- Pruned branches and treetops, wood chips and wood chips produced by logging, and sawdust left over from forestry processing can be used as high-quality raw materials for biomass rod making after proper treatment;
- Bagasse, fruit shells, walnut shells, coconut shells, etc. are rich in lignin and other ingredients, suitable for processing into biomass fuel rods, and have high utilization value.
- Animal manure, such as cow dung and sheep dung, which has been pre-treated by drying and deodorization, can also be used as raw materials for biomass rod making.

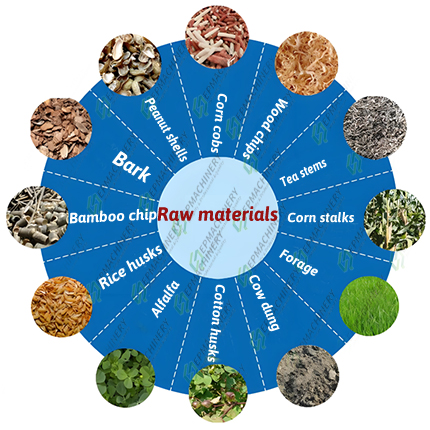

Common raw materials for biomass briquettes making
2. Raw material pretreatment

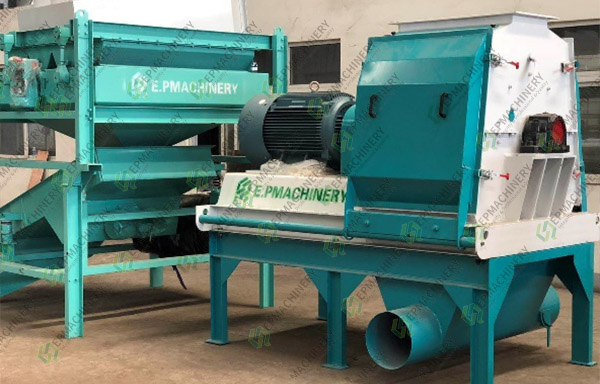

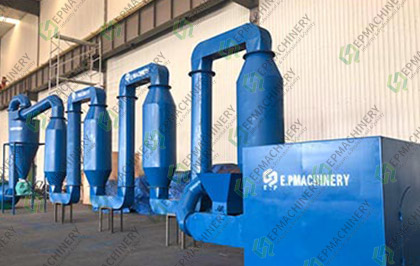

The pretreatment stage is crucial(relevant to whether the briquettes is successful), mainly including operations such as crushing and drying. Crushing is to use a crusher to break large pieces of biomass raw materials into suitable particle sizes (generally requiring the raw material particle size to be less than 5mm); drying is to control the moisture content of the raw materials, generally requiring the moisture content to be between 8% and 12%.
3. Briquettes making
The pretreated raw materials enter the rod making machine, where they are extruded and formed according to the set process parameters such as pressure, temperature, and propulsion speed. This link requires precise control of various parameters to produce biomass fuel rods with uniform density and qualified strength. Different biomass raw materials may require fine-tuning of the corresponding parameters to achieve the best rod making effect. (Read the setting guide of the biomass briquettes making machine)

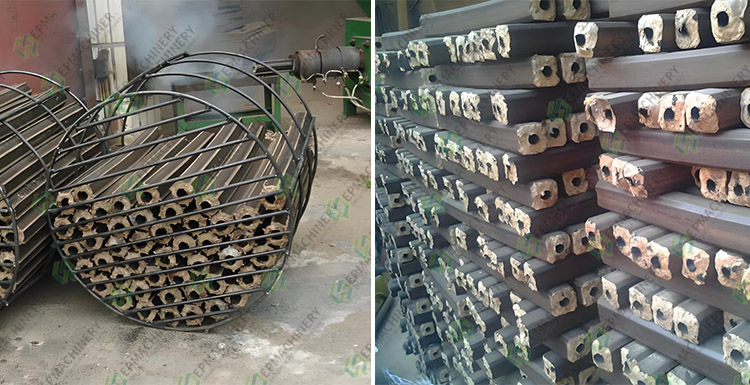

Biomass brequettes finished product figure
4 Carbonization (if your finished product is charcoal briquettes)
After the semi-finished biomass briquettes is treated with a sealed carbonization furnace, the carbonization process is completed through a 200-700°C gradient temperature control system under hypoxia or oxygen-limiting conditions, and undergoes three stages: material drying, pyrolysis and deep carbonization. Based on capacity planning, it can be adapted to hoisted continuous carbonization furnace or underground kiln carbonization system.

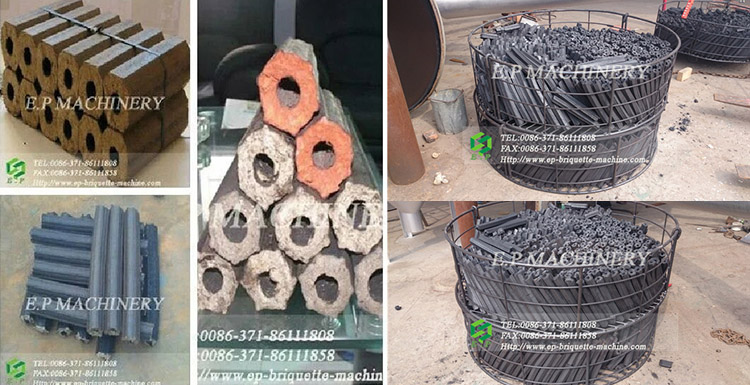

Semi-finished biomass briquettes are put into a carbonization furnace for carbonization
How to choose a suitable biomass rod production line?
Consider the production scale
If it is a small biomass fuel processing plant or an individual farmer who wants to produce biomass rods, then a small and relatively simple biomass rod production line can meet the demand. This type of production line is relatively low in price and does not occupy a large area;
Large energy companies plan to produce biomass fuel rods on a large scale to supply the market. They need to invest in large and efficient biomass rod production lines, and pay attention to factors such as its production capacity and equipment stability.
Pay attention to equipment quality and brand
There are many brands of biomass rod production equipment on the market, and different brands differ in equipment quality, technical level, after-sales service, etc.
It is recommended to choose a brand with a good reputation and rich production experience to ensure that the purchased production line equipment is of reliable quality and can operate stably for a long time, reducing subsequent maintenance and replacement costs.
EP Machinery is a professional biomass fuel rod making machinery manufacturer and supplier in China. We have built many successful biomass rod making turnkey projects for customers all over the world, including small biomass rod making plants and highly automated complete biomass rod making production lines. Welcome to contact us for a more accurate project plan.
