For big biomass briquetting plant with capacity more than 1000kg/h, Rotary Drum Dryer can be matched. Our rotary drum dryer is made from boiler steel. Compared with normal steel, boiler steel is able to withstand higher temperature (400 degree Celsius roughly). In other words, the drum has longer lifespan, without deformation.

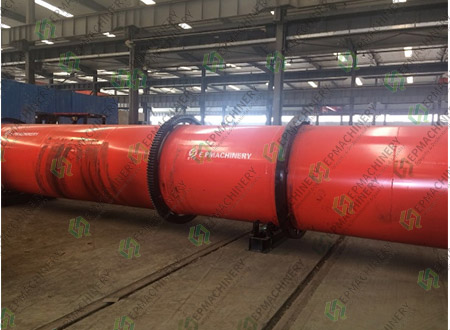

On-site installation of drum dryer

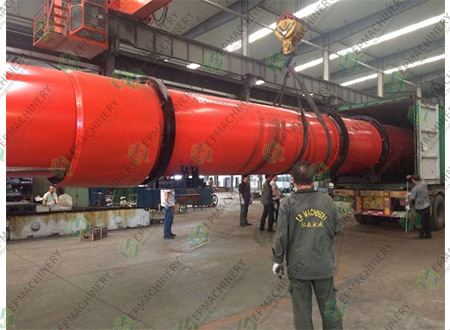

Industrial Scale Drum Dryer Delivery

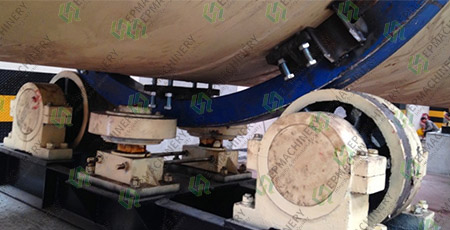

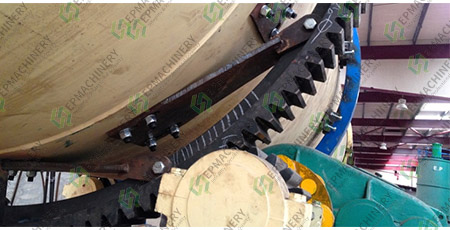

Regarding the supporting structures such as ring gears and ring rollers, if become deformed, they will also result in serious accidents. Therefore, our ring gear, ring roller and gear box, etc. are all made from qualified raw materials. Furthermore, these important components are all heat treated. After heat treating process, the properties such as hardness, toughness and abrasive resistance are all improved. Besides, these important components are produced via CNC machine tools, to keep better accuracy.
On-site installation of drum dryer
Drum Dryer Delivery
Main Technical Parameters of the Rotary Drum Dryer
The following table shows the parameter details of this industrial rotary drum dryer machine. Feel free to contact us if you are interested to get more info or latest price.
| Model | HSGT-1x10 | HSGT-1.2x12 |
HSGT-1.5x12 |
|---|---|---|---|
| Drum Diameter | 1M | 1.2M | 1.5M |
| Drum Length | 10M | 12M | 12M |
| Transmission Power | 5.5KW | 5.5KW | 7.5KW |
| Air Fan Power | 18.5KW | 22KW | 22KW |
| Air Fan Power | 18.5KW | 22KW | 22KW |
| Discharge Device Power | 0.75KW | 0.75KW | 0.75KW |
| Cyclone Diameter | 1000MM | 1200MM | 1300MM |
| Applicable Material Moisture | Less than 55% | Less than 55% | Less than 55% |
| Final Material Moisture | 8%-12% | 8%-12% | 8%-12% |
| Final Material Moisture | 8%-12% | 8%-12% | 8%-12% |
| Production Capacity | 1000KG/H | 2200KG/H | 3000KG/H |
| Hot-air Stove | Built on site | Built on site | Built on site |
| Dust Collector | Standard | Standard | Standard |
| Electric Control Cabinet | Standard | Standard | Standard |
| Weight | 7700KG | 9000KG | 11600KG |
| Warranty | 2 Years | 2 Years | 2 Years |
Hot Air Dryer for sale

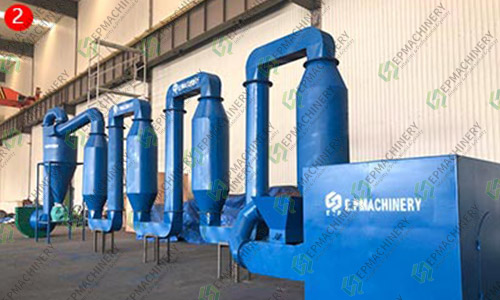

The appropriate moisture content of biomass raw materials for briquetting is 8%-12% roughly, so it will need a dyer. Drying process is very important, excessive moisture content in raw materials will result in failure to produce briquettes and may result in explosions due to too much high temperature steam. Hot Air Dryer is cheap and suitable for small plant. Raw materials mixed with high temperature air flow go through a long pipeline, and dry materials are discharged finally.
Hot Air Dryer for sale
