HSZB-C series is the newest developed Briquette Machine. It is equipped with the full-automatic length controlling and cutting system, which can achieve adjustable briquette length and full-automatic cutting. In addition, HSZB-C series is equipped with a complete safety cover and observation window for the whole machine, which can not only protect operator, but also be more convenient and efficient to operate.
Biomass Briquette Press for Sale
HSZB-C Biomass briquette machine
Equipment Spare Parts
| Model | HSZB-C Briquetting Press |
|---|---|
| Motor Power | 18.5 KW |
| Electric Heater | 2.2KW*2PCS |
| Briquette Shape | Hexagonal |
| Briquette Diameter | 40 MM, 50 MM, 60 MM |
| Diameter of Inside Hole | 15 MM |
| Briquette Density | 1350 KG/M³ |
| Production Capacity | 250-350 KG/H |
| Raw Material Size | 3-5 MM |
| Raw Material Moisture | 8-12% |
| Overall Weight | 1000 KG |
| Overall Dimension | 2300x550x1700 MM |
| Warranty | 2 Years |

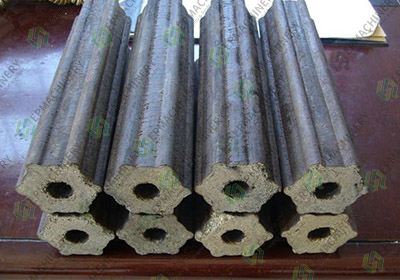

Extruded Biomass / Wood Briquettes
Resulting Briquettes: high density and strength, uniform dimensions, smooth cross-section.
What Kind of Materials Can HSZB-C Biomass Briquette Machine Process?
HSZB-C series Briquette Machine can process the raw materials as following: agricultural and forestry waste, furniture factory waste, wood branches, leaves, sawdust, peanut shells, straw, hay, rice husks, coffee grounds, nutshell, bagasse,pallet waste, and other biomass raw materials.
Raw Materials Can be Used for Making Charcoal Briquette
Biomass material briquetting, a process to compress biomass material into solid briquette with a certain shape (normally, hollow hexagonal or square) and density under high temperature and high pressure. Biomass materials contain a large amount of lignin which has a certain bonding function at high temperature, so that the resulting solid briquette has high density and strength without adding any binding materials. The density can reach up to 1350kg/m³. However, due to different proportions of lignin in different raw materials, some raw materials are easy to be shaped, while others are not easy. The density and calorific value of the resulting solid briquette will also be different.
Features of HSZB-C series Briquette machine.
- High automation. Equipped with automatic cutting system, which can set the length via control panel, and cut automatically.
- Resulting briquette has high density and strength, maximum 1350kg/m³roughly, which is suitable for further process to make charcoal briquette.
- Easy operation, high production efficiency.
- Adjustable temperature, to meet the demands of different raw materials.
- Be suitable for complete automatic Biomass Briquetting and Carbonizing Production Line.

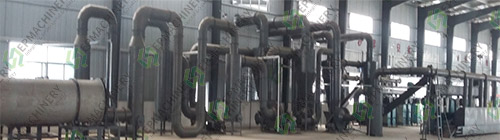

Fully automatic biomass briquetting carbonization production line
Complete full-automatic Biomass Briquetting & Carbonizing Production Line in Egypt. Including Wood Chipping – Crushing – Drying – Briquetting – Carbonizing – Packing.Don't hesitate to get in touch with us if you need any suggestion on briquetting production!
